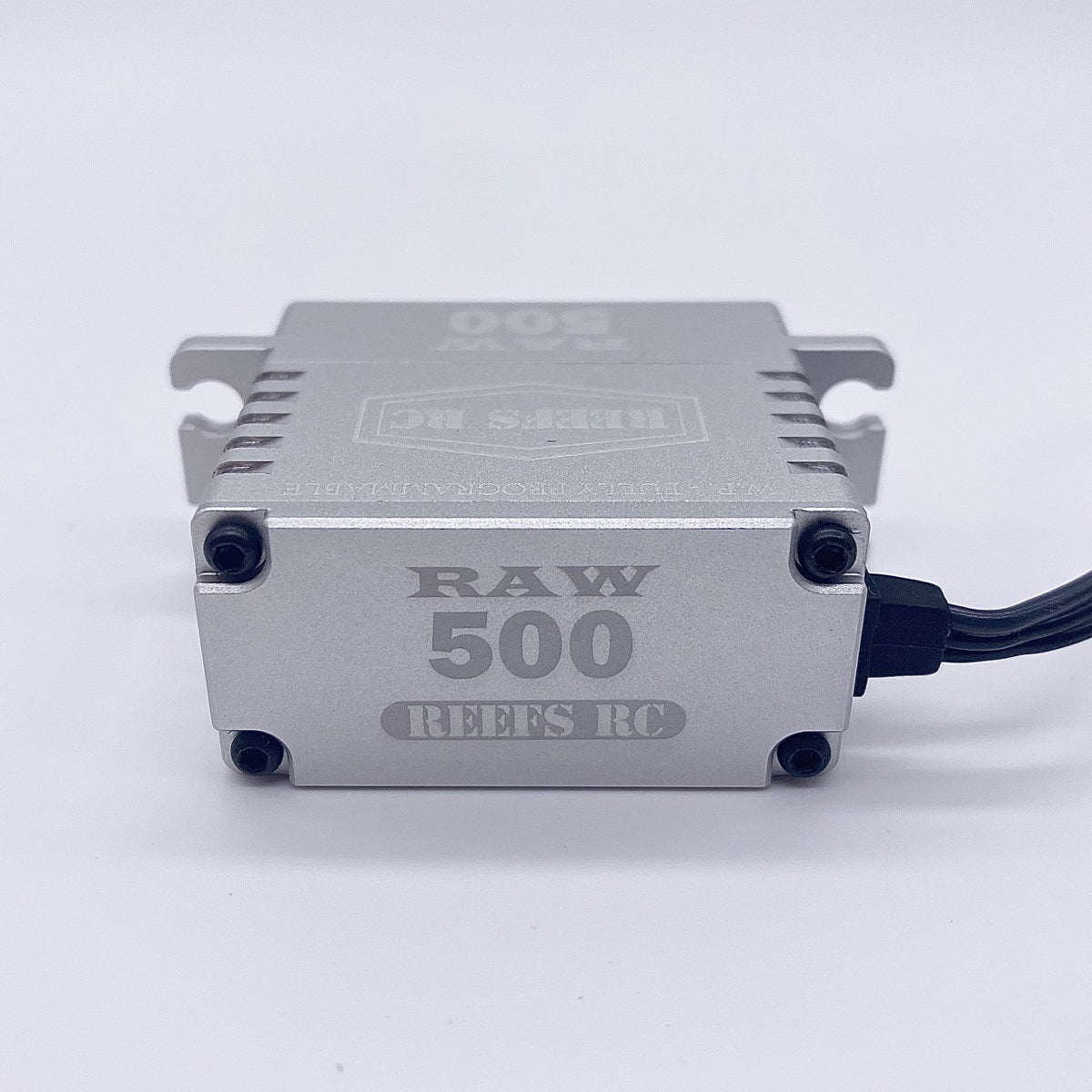

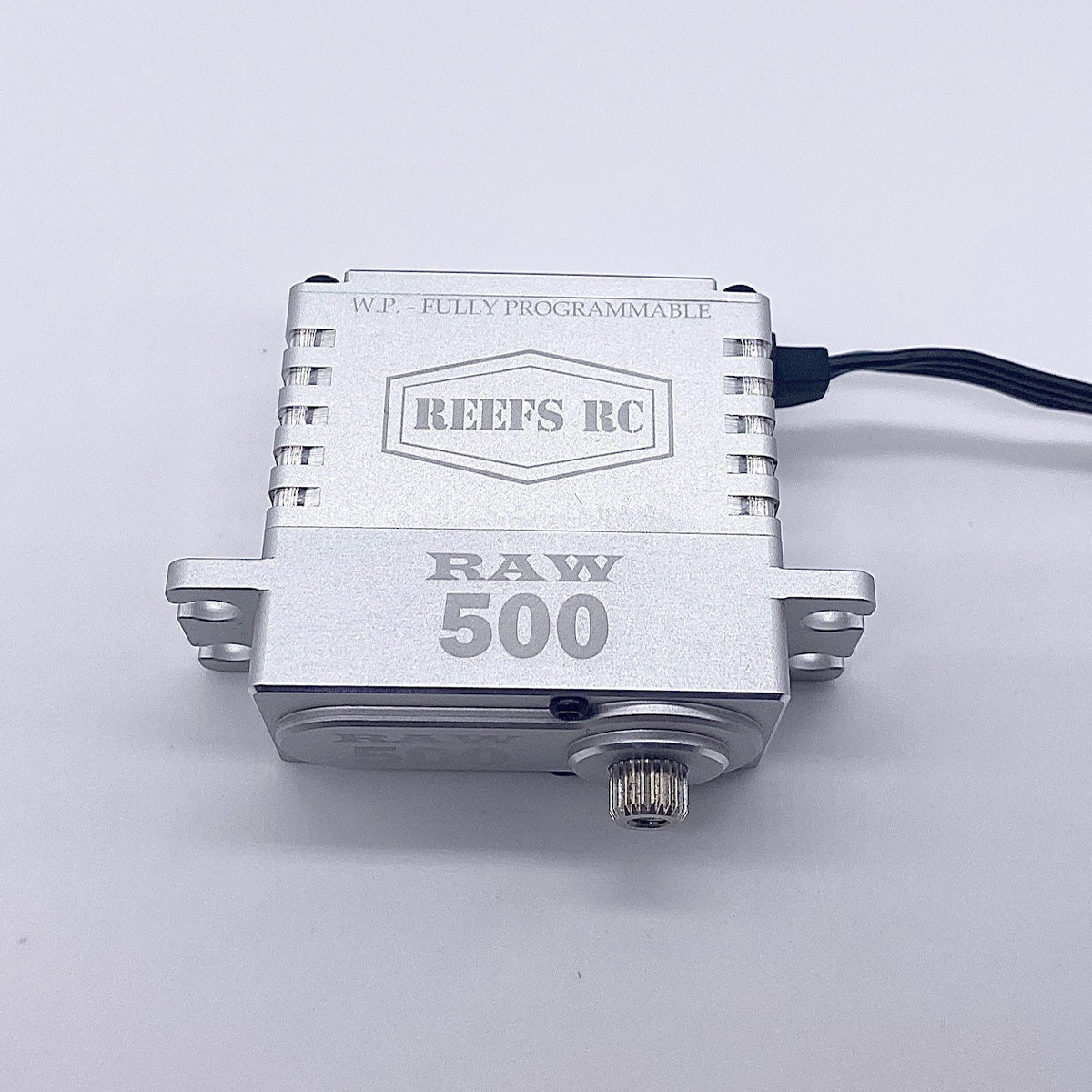

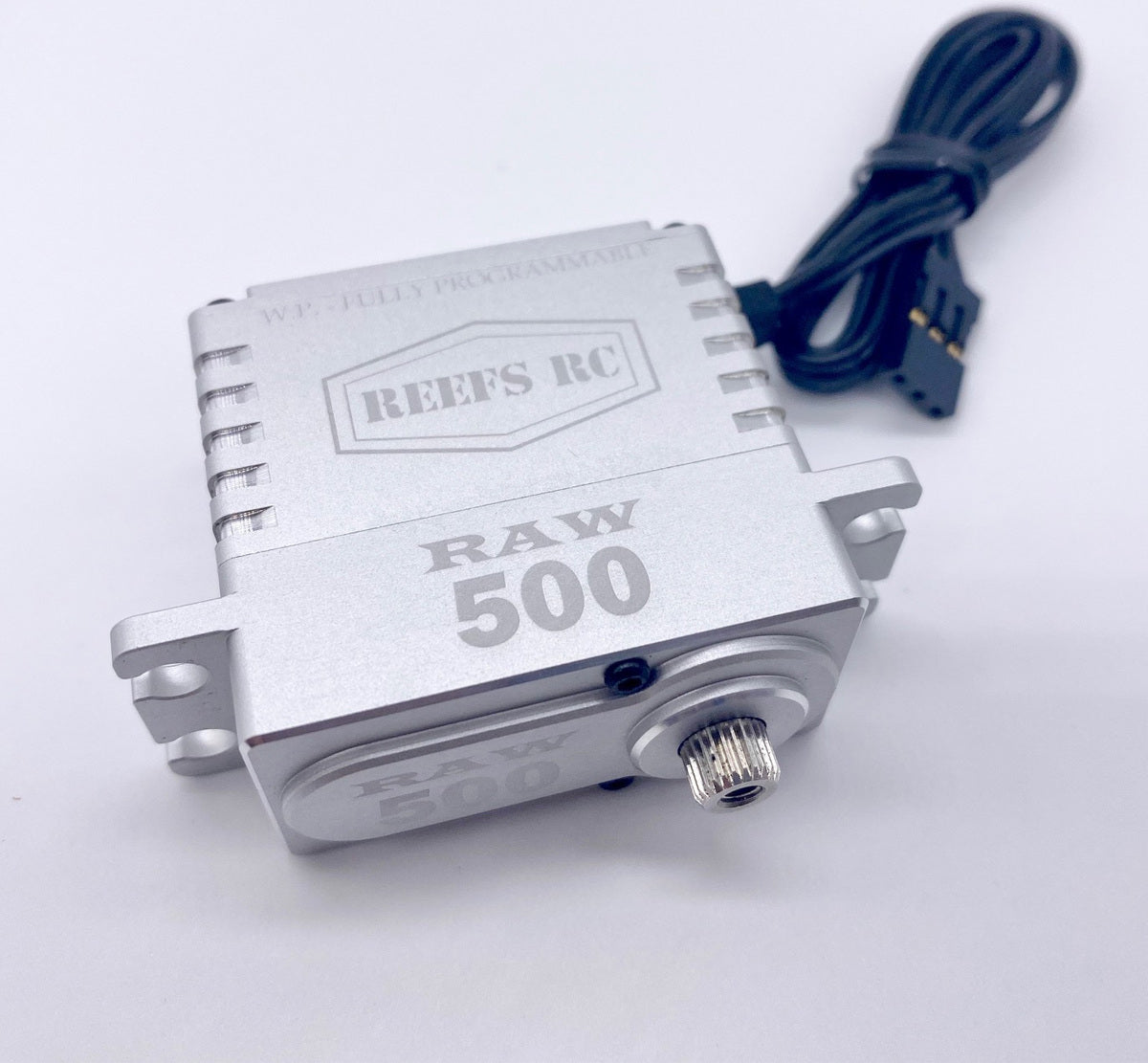

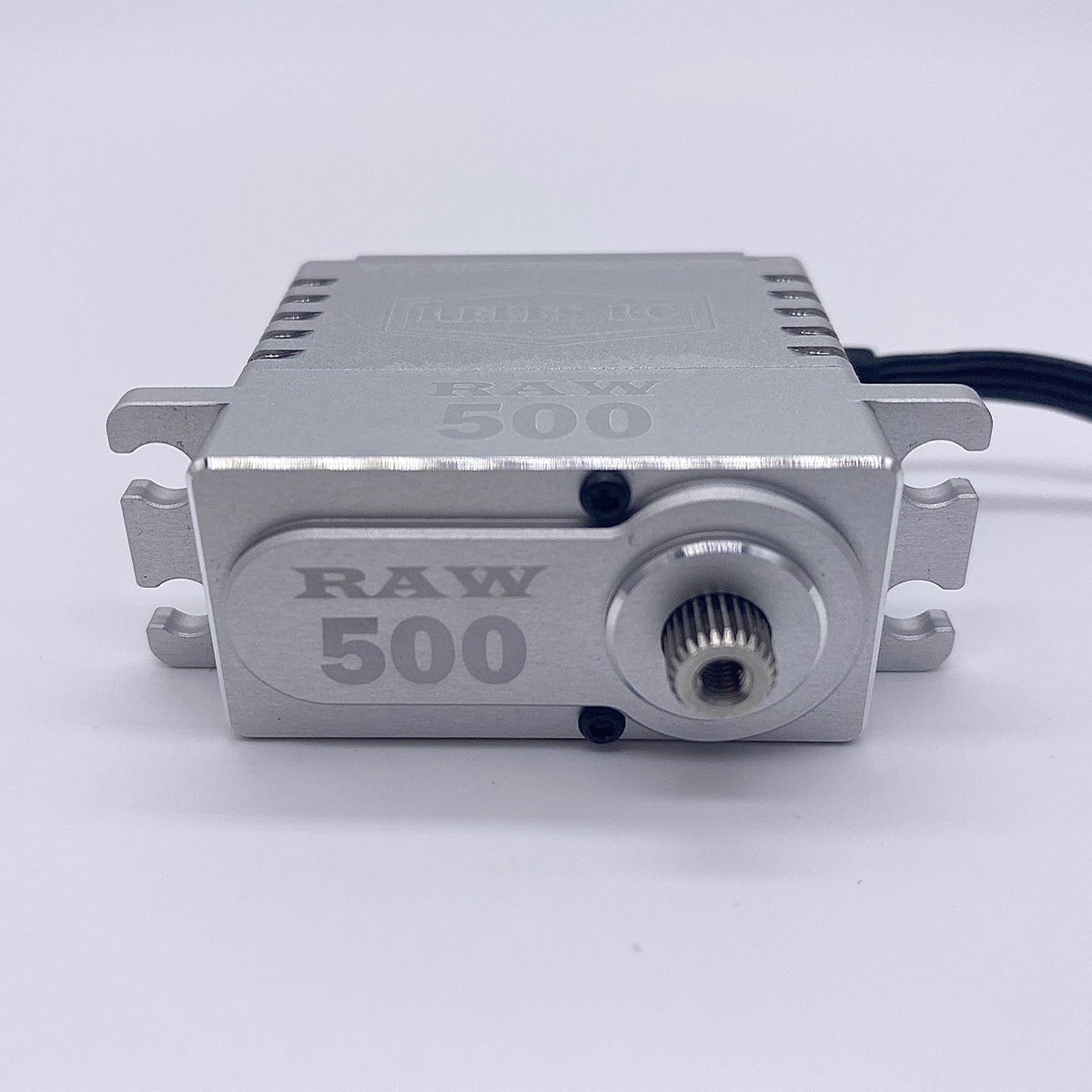

SEHREEFS54 RAW 500 Servo Programable
Description
Description
SEHREEFS54 RAW 500 Servo Programable.
What stands out
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software
What comes in the box
- (1) RAW 500HD Servo, Programable
What you still need
- REEFS LINK required for Programming
Not sure what else you need to run it? Ask us before you buy — we would rather you leave with a truck that runs than a box that waits on a part. Call 346-365-2987 or come by the shop.
Specifications
| Connector Type | Universal |
| Product Length | 1.57" (40 mm) |
| Product Width | 0.79" (20 mm) |
| Product Height | 1.5" (38 mm) |
| Product Weight | 2.75oz (78g) |
| Application | 1/10 - 1/8 Cars, Trucks |
| Bearing | Dual Ball Bearings |
| Bushing Or Bearing | Bearing |
| Deadband | 2µs |
| Input Voltage | 4.8V ~ 8.4V |
| Maximum Servo Speed | 0.11 sec/60 deg @ 6.0V, 0.095 sec/60 deg @ 7.4V, 0.08 sec @ 8.4V |
| Maximum Servo Torque | 450oz/in @ 6V, 500oz/in @7.4V, 565oz/in @8.4V |
| Programmable | Yes |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
Manufacturer part number SEHREEFS54. Checking a part against a model you already own? Send us the number and we will confirm the fit before you buy.
Why buy it here
RC Hobby Pros is a real hobby shop in Katy, Texas — not a drop-shipper. We have been in RC for 30 years, we stock parts for what we sell, and we fix what you break. Every vehicle gets checked before it leaves the counter and we will walk you through the first run. Come see it at 555 S Mason Rd, Katy, TX 77450 or call 346-365-2987.
