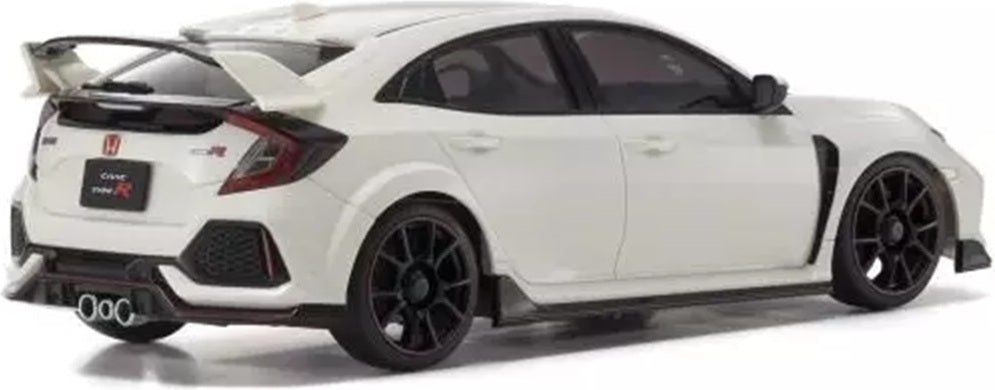

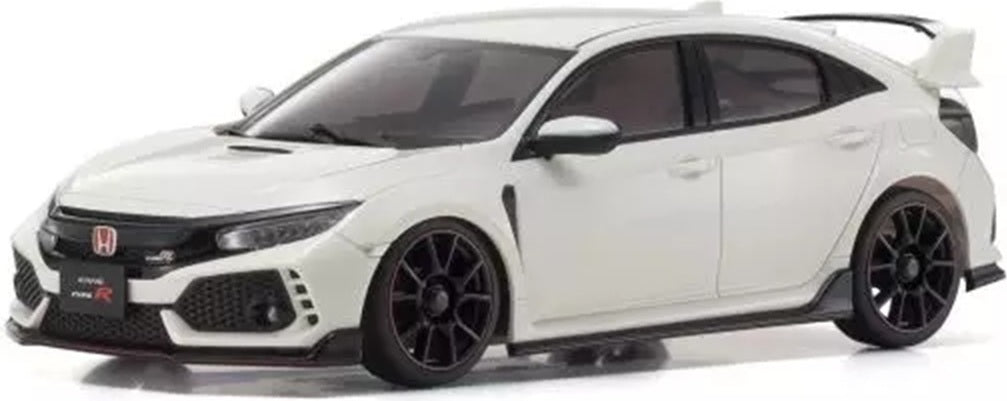

MINI-Z AWD MA-020 Honda Civic Type R Championship White

Kyosho wants more drivers to experience the thrill of driving a Mini-Z AWD. To fulfill that desire, the "Mini-Z AWD Ready Set" was created. It incorporates the MA-020 series chassis with a revised steering control program, and features a front-end "VCS (Variable Camber Suspension)" that optimizes camber changes with suspension stroke. It's compatible with a dedicated gyro (sold separately: part number MZW711), equipped with a dedicated space and gyro adjustment volume. The gyro's effectiveness can be adjusted within the chassis itself, reflecting attitude changes in steering correction, providing a safe driving experience for beginners and support for experts to showcase their skills. Furthermore, it boasts a full bearing specification with 14 bearings. This highly efficient and durable chassis is available at an affordable price. The set includes a Mini-Z body with a realistic scale feel and a 2.4GHz radio control system "Syncro KT-531P" that eliminates the need for band management. With drift tires as standard equipment, you can enjoy thrilling drift driving immediately by simply inserting batteries. Of course, it is compatible with many of the ASC bodies that are part of the Mini-Z collection (additional parts may be required depending on the car model). Experience the driving feel that can only be enjoyed with an AWD chassis with the "Mini-Z AWD".

*The separately sold LED light unit set (No. MZW429R) cannot be installed on the Honda Civic Type R.

---

Includes:

• Fully assembled chassis with R/C unit installed
• Factory-painted and marked plastic body

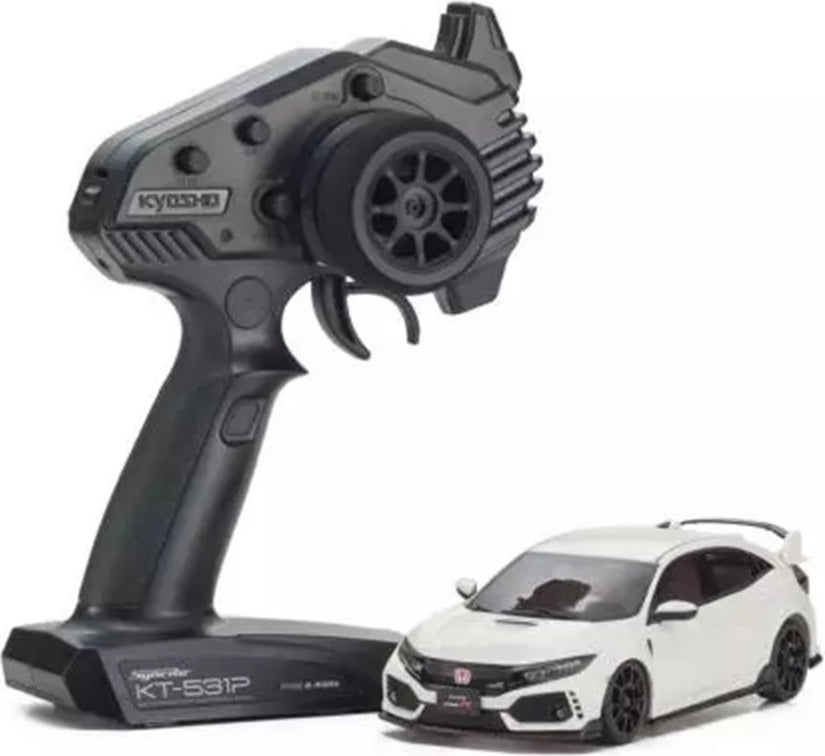

• Syncro KT-531P 2.4GHz transmitter
• Mini pylons
• Pinion gears (15T, 17T, 19T, 21T)
• Spur gears (27T, 29T, 31T)
• Spare nuts
• Wheel wrench
• Pinion removal tool

---

Required to Complete:

• 4 AAA batteries for the transmitter
• 4 AAA batteries (alkaline or nickel-metal hydride) for driving

---

Features:

• A renewed version of the AWD sports chassis based on the MA-020 series chassis.
• Dedicated circuit board with revised steering control program.
• Equipped with a volume control that allows adjustment of the gyro effect on the chassis alone.
• Drift tires are standard equipment.
• Ready to run as soon as batteries are inserted.
• Uses a 2.4GHz Syncro KT-531P transmitter that does not require band management.
• Factory-finished body with the same finish as the display model.
• Front suspension "VCS" that brings out camber changes in accordance with the suspension stroke.
• Front suspension coil spring replacement is easy without tools.
• A wide range of optional parts can be attached.
• Note) Optional ICS cannot be used. Also, since it is designed exclusively for the KT-531P transmitter, it is not compatible with KT-18, KT19, EX-5UR ASF, EX-6, EX-6R transmitters. In addition, the gyro unit (sold separately: part number MZW711) is only compatible with the dedicated product.

---

Specifications:

• Overall Length: 167.0mm
• Overall Width: 70.0mm
• Overall Height: 52.0mm
• Wheelbase: 98.0mm (LL)
• Tread: Front: 59.5mm Rear: 59.5mm
• Chassis Used: MA-020-N
• Front Wheel Offset: Narrow +1.5mm
• Rear Wheel Offset: Narrow +1.5mm
• All-Up Weight: 193.0g
• Radio Control System Used: Syncro KT-531P
