1/10 UTB10 Capra 1.9 4WS 4X4 RTR Brushed Rock Crawler, Orange
1/10 UTB10 Capra 1.9 4WS 4X4 RTR Brushed Rock Crawler, Orange is backordered and will ship as soon as it is back in stock.
Pickup available at RC Hobby Pros
Usually ready in 1 hour
1/10 UTB10 Capra 1.9 4WS 4X4 RTR Brushed Rock Crawler, Orange
Batteries & Chargers That Fit This
This one runs 2S, 3S and uses a EC3 connector.
Batteries That Fit
The maker does not publish a battery-bay size for this one, so we will not guess a pack online. It takes a 2S or 3S LiPo with a EC3 plug — call or stop by the shop and we will fit the right pack to it.
Chargers That Fit
-
up to 4S · 50-99W · 1 port
-
-
up to 4S · 1 port
-
-
up to 4S · 2 port
-
-
up to 6S · 100 - 199W · 2 port
-
Description
Description

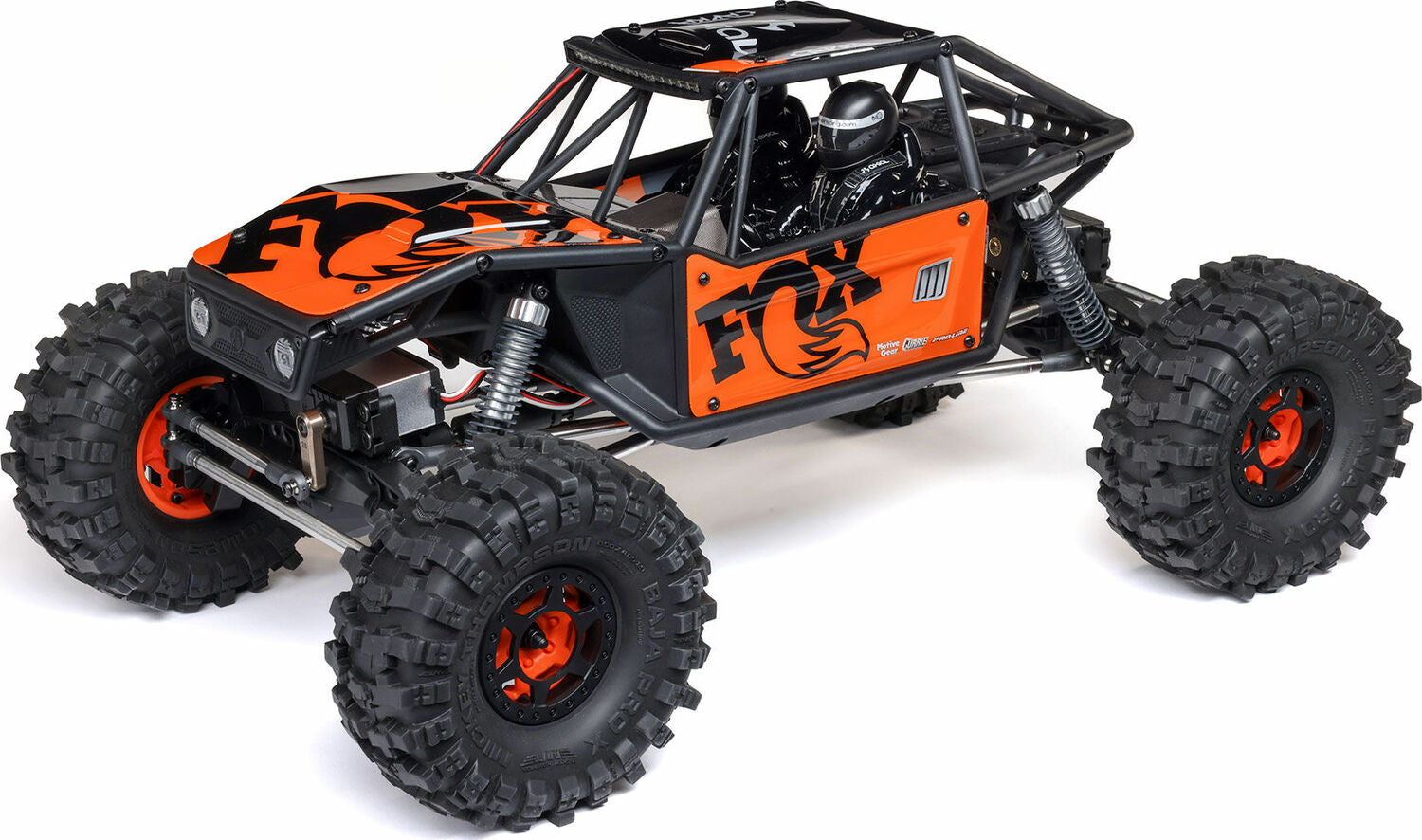

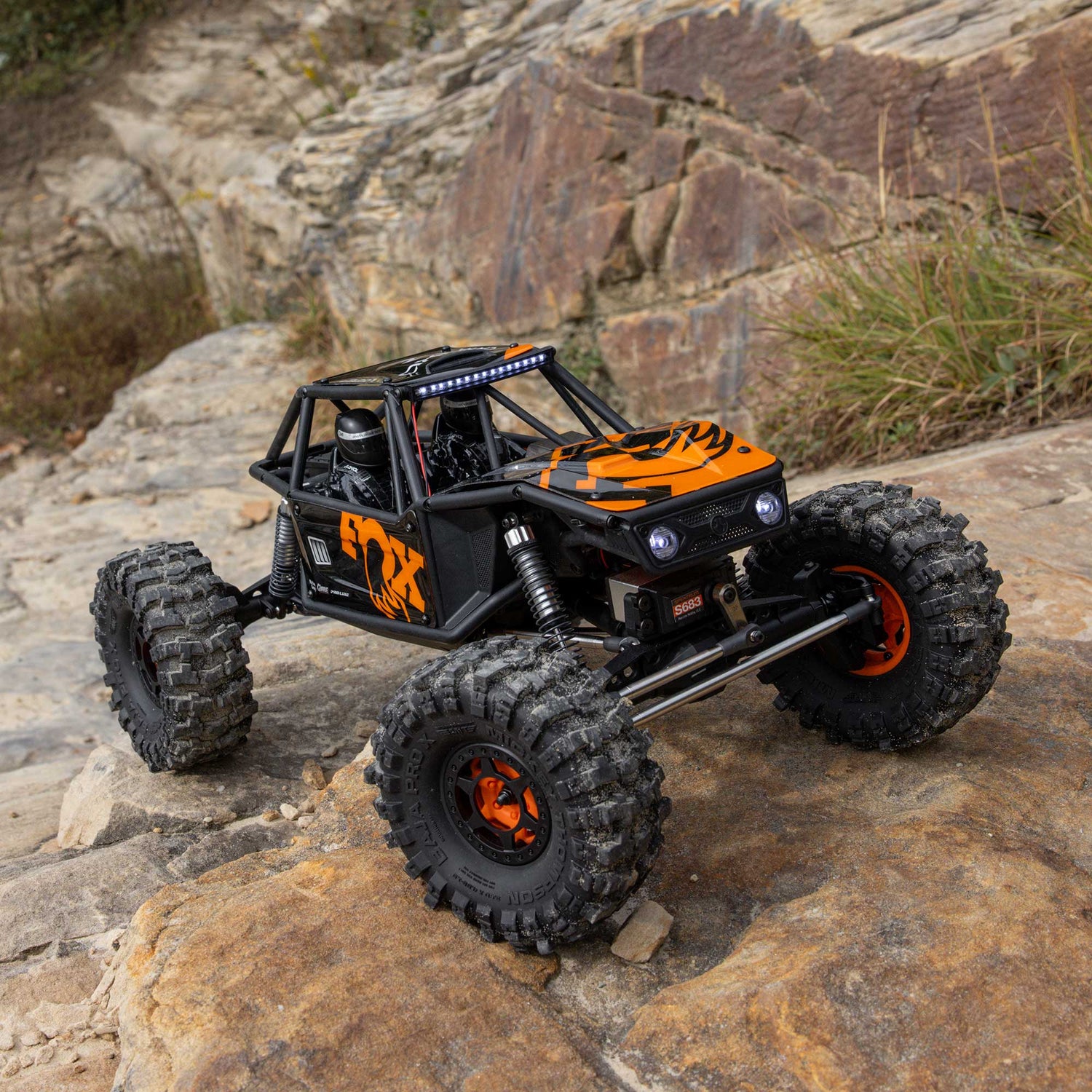

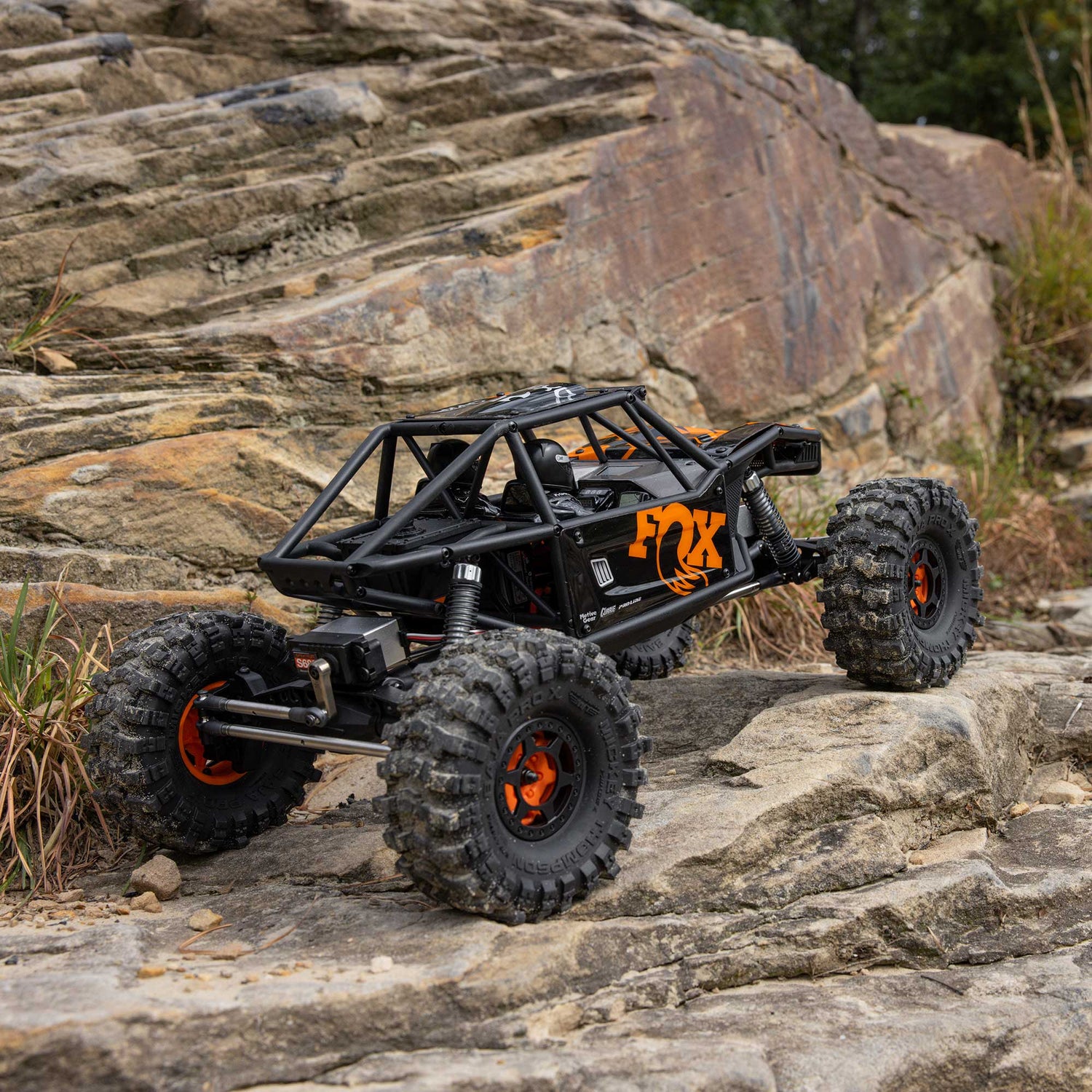

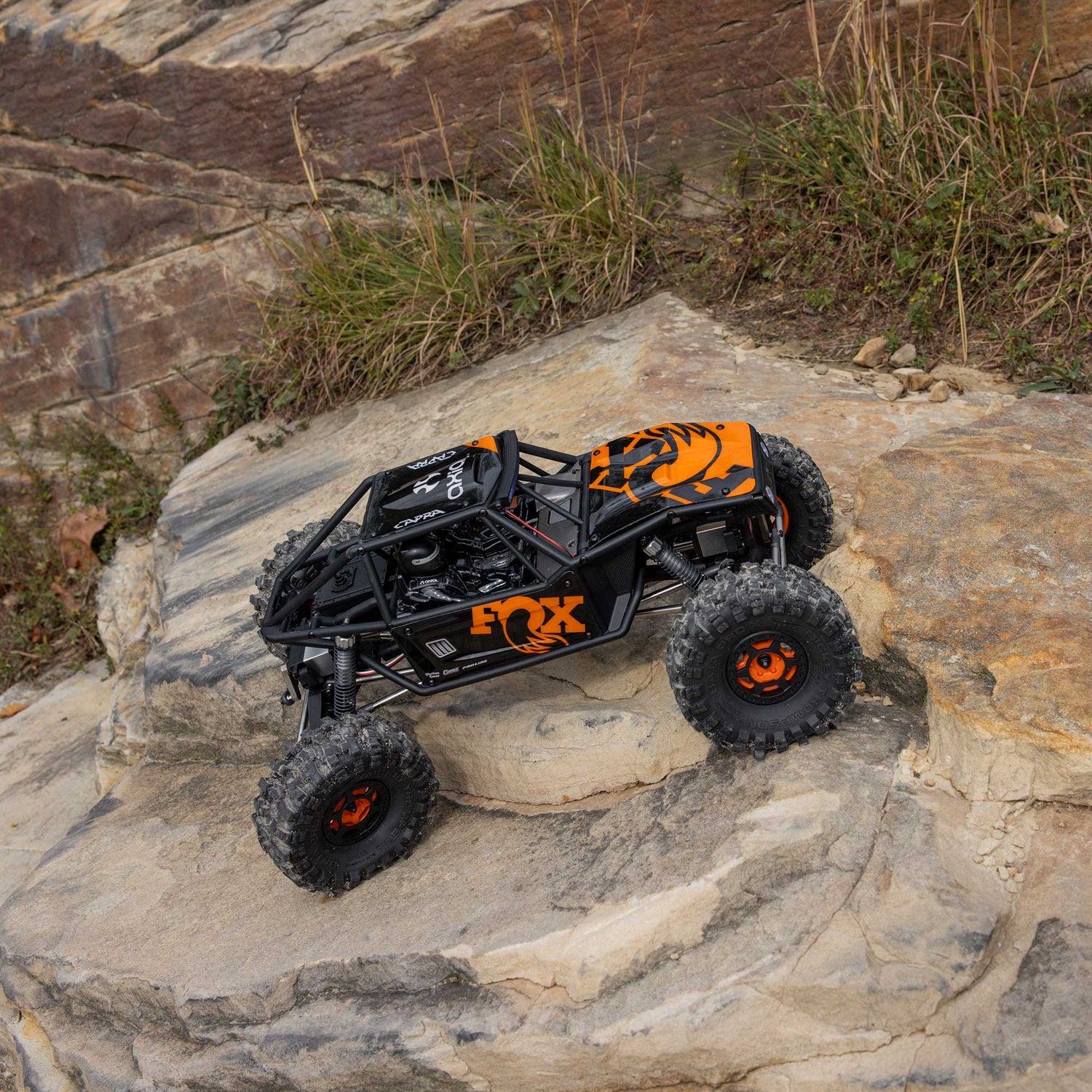

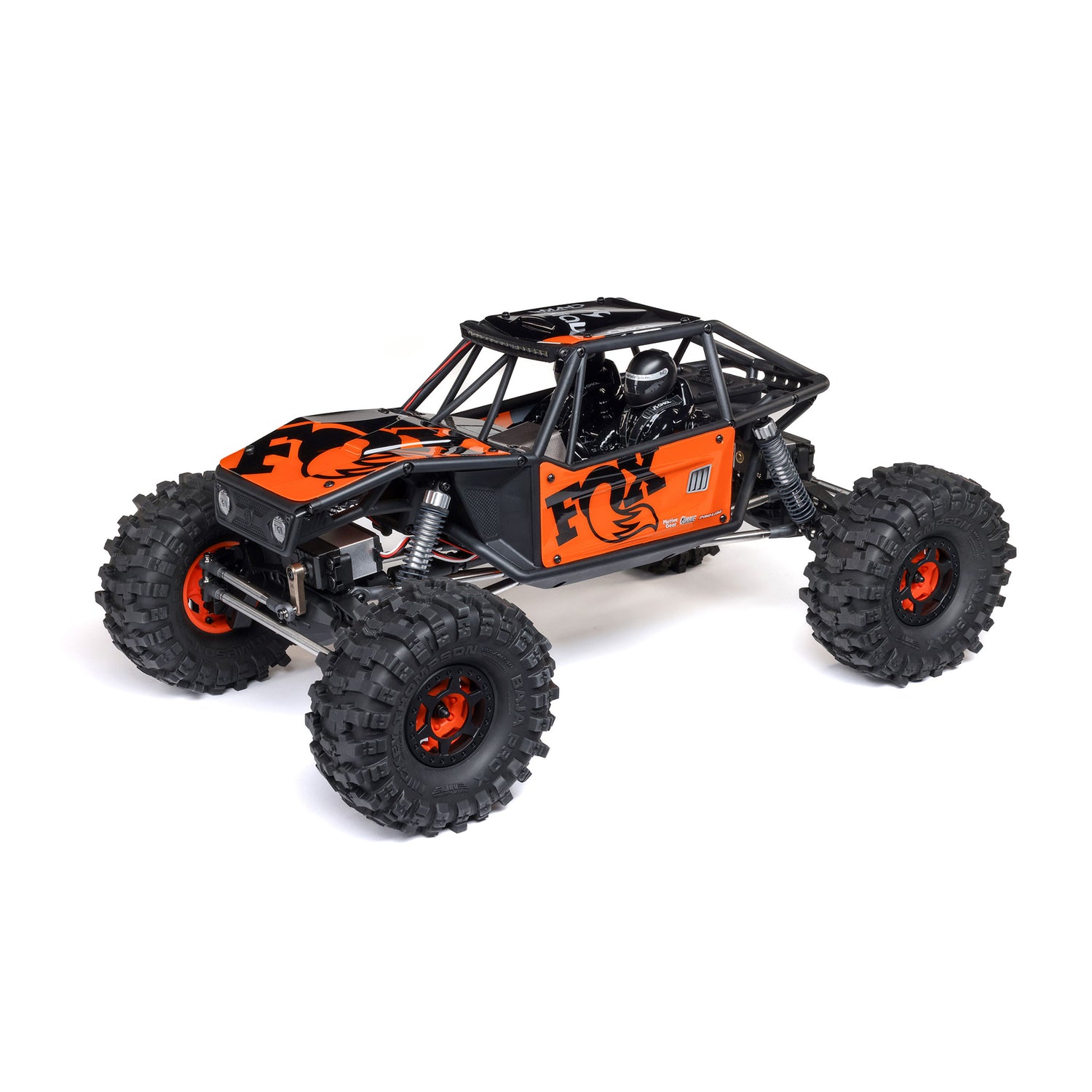

The 1/10 UTB10 Capra 1.9 4WS 4X4 RTR Brushed Rock Craw is a 1/10 scale rock crawler, trail buggy. It arrives built, painted and ready to run, 4WD drivetrain, brushed power. Battery and charger are both sold separately -- tell us how you plan to run it and we will spec the pack and charger with you.
What stands out
- Trail buggy design with composite cage
- New transmission with lower gear ratio
- Smooth, durable 4-link suspension
- Four-wheel steering
- Licensed Currie F9 portal axles

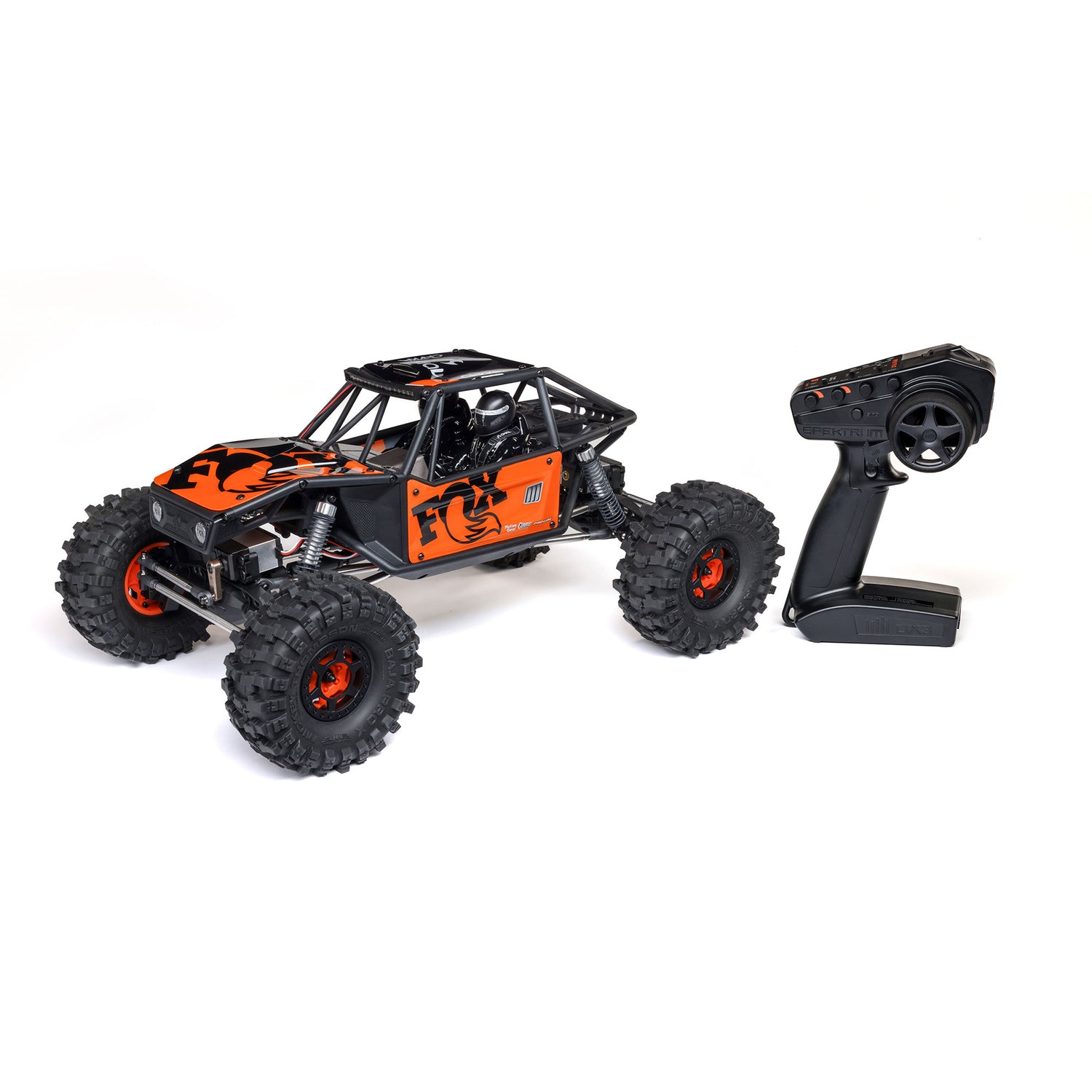

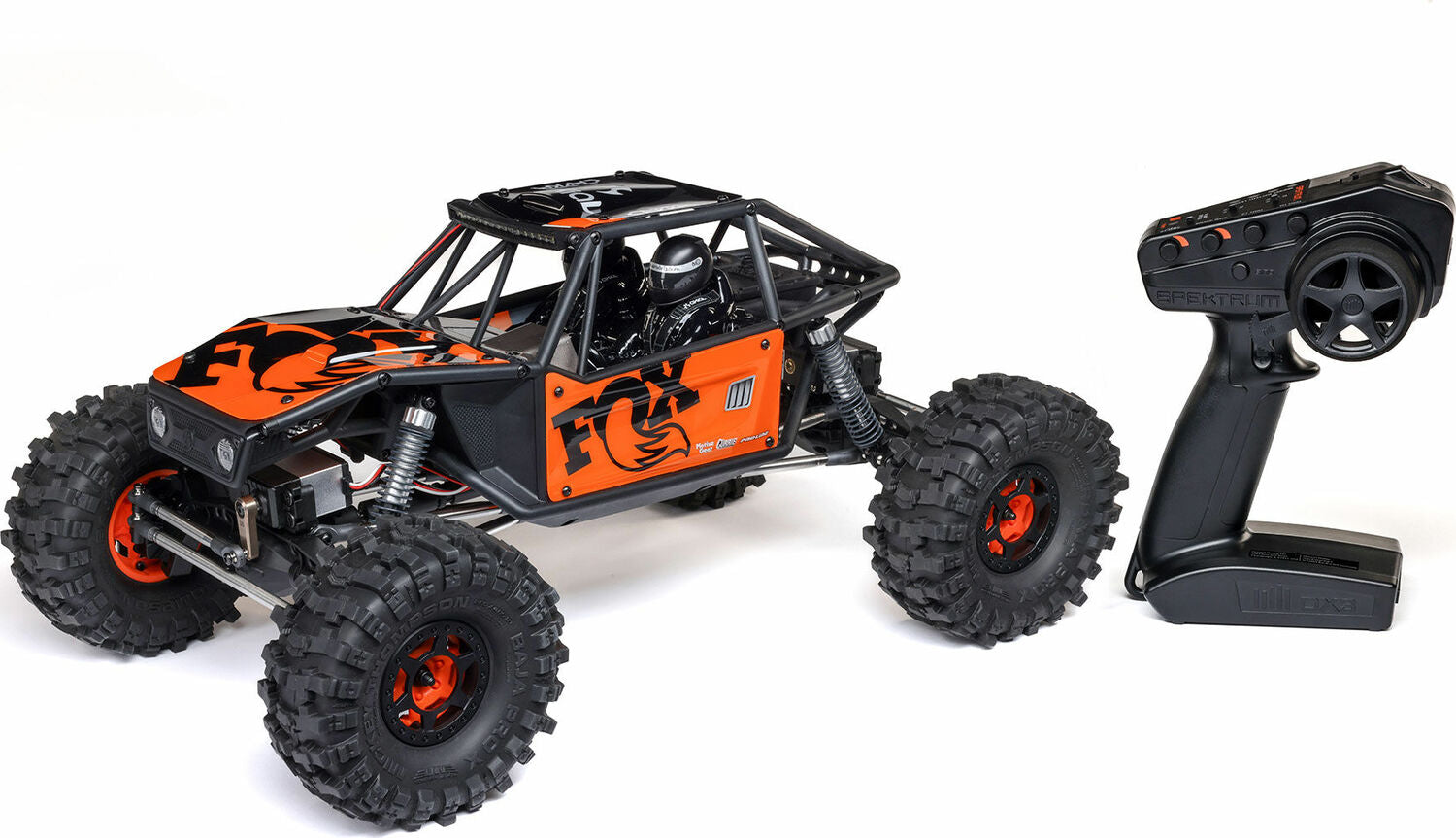

What comes in the box
- (1) Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy RTR:
- (1) Axial 540 Electric Motor (installed)
- (2) Spektrum S683 25T waterproof metal gear steering servos (installed)
- (1) Spektrum Firma 40A brushed waterproof ESC
- (1) Spektrum SR515 DSMR 5-channel receiver
- (1) Spektrum DX3 2.4GHz Transmitter
- (4) AA Alkaline Transmitter Batteries
- (1) Instruction Manual
What you still need
- (1) 2-3S LiPo Battery with EC3 or IC3 connector
- (1) Compatible Battery Charger
Not sure which battery, charger or connector you need? That is the whole reason to buy this from a real shop — we will spec the pack, the charger and the safe bag with you so nothing arrives that you cannot run. Call 346-365-2987 or come by the shop.
Specifications
| Scale | 1/10 |
| Vehicle Type | Rock Crawler, Trail Buggy |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Chassis | Injection Molded Tubular |
| Motor Type | Brushed |
| Motor Size | 540 |
| Speed Control | Included |
| LiPo Compatibility | 2S, 3S |
| Connector Type | EC3, IC3 |
| Radio | Included |
| Receiver | Included |
| Servos | Included |
| Shock Type | Aluminum Oil-Filled/Coil-Over Spring |
| Differential | Locked |
| Final Drive Ratio | 45.37:1 |
| Pinion | 14T |
| Product Length | 17.4" (442 mm) |
| Product Width | 10.7" (272 mm) |
| Product Height | 9" (229 mm) |
| Wheelbase | 12.7" (323 mm) |
| Product Weight | 4.5 lb (2.04 kg) |
| Battery | Sold Separately |
| Charger | Sold Separately |
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Complete Vehicle |
| Body | Screened, Polycarbonate |
| Drive Type | Forward/Brake/Reverse |
| Front Track | 8.87 in (225.3 mm) |
| Gear Pitch | 32-Pitch |
| Ground Clearance | 3.33 in (84.65 mm) |
| Inner Tire / Outer Wheel Diameter | 1.9 in |
| Internal Gear Ratio | 6.31:1 |
| Power Type | Electric |
| Rear Track | 8.87 in (225.3 mm) |
| Steering Type | 4WS |
| Suspension | 4-Link Solid Axle |
| Tire Compound | Soft |
| Tire Tread | Pro-Line OE Licensed Mickey Thompson Baja Pro X Tires |
| Track Surface | All-Terrain / Backyard |
| Vehicle Size | Standard |
| Wheel Width | 1" (25.4 mm) |
Manufacturer part number AXI-1543T1. Checking a part against a model you already own? Send us the number and we will confirm the fit before you buy.
