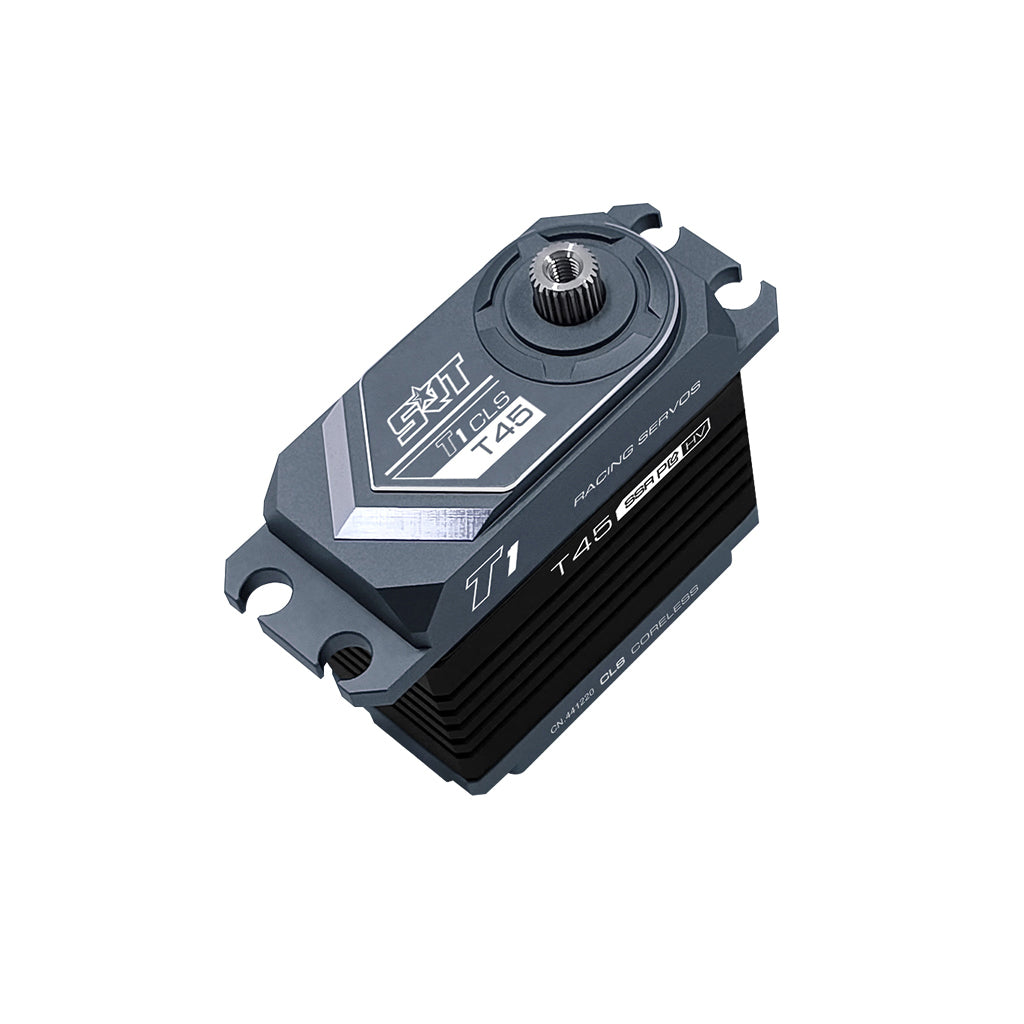

SRT T45 HV Coreless Digital Servo - 625 oz-in, Metal Gear, Crawler/1-8

A high-torque coreless digital servo for 1/10 and 1/8 crawlers that need serious holding power. 555.5 oz-in (40 kg-cm) at 7.4V, and 625 oz-in (45 kg-cm) at 8.4V on full HV. When a lighter servo hunts or folds on a ledge, this is the upgrade.

Why it is worth the money

• Coreless motor - smoother and more precise off-centre than a cored servo in the same class
• Steel and aluminum metal gear train with dual bearings - built for repeated stall loads
• CNC-machined aluminum case that sheds heat on long technical crawls
• Direct-drive potentiometer with a 2µs dead band, SSR-mode compatible, 25T spline
• Programmable high-torque HV coreless - standard size so it drops into most bays

Specifications

• Stall torque: 30 kg-cm (499.9 oz-in) @ 6.0V / 40 kg-cm (555.5 oz-in) @ 7.4V / 45 kg-cm (625 oz-in) @ 8.4V
• Speed: 0.16 sec/60° @ 6.0V / 0.14 @ 7.4V / 0.13 @ 8.4V
• Operating voltage: 6.0 - 8.4V DC (HV capable)
• Motor: coreless · Gears: steel + aluminum · Bearings: dual · Spline: 25T
• Size: 40.7 x 20.5 x 39.0 mm (standard size) · Weight: 81 g
• Lead: JR connector, 300 mm · Frequency: 1520µs / 330Hz · Dead band: 2µs
• Manufacturer part number: SRTT45

Fitment
Built for 1/10 crawler and 1/8 crawler steering (and aircraft builds that need the same torque class). Bring the chassis in and we will check the servo bay and horn spline against your build before you buy.
